|  | Océ's attempt to give a second coming to the 9456 print engine. They took their tried and true 9456 II print engine (one of the best print engines produced in the last ten years) and cut out the capacity to attach a scanner so that they could sell the unit as a "new stand alone printer." Nice try Océ' but it takes more than paint to make a new product. |
| [−] |
|
Printer
|
|
|
Technology
|
- Electrophotography (LED head) with Oce's
|
|
|
- enhanced-resolution printing
|
|
|
- Organic photoconductor (OPC)
|
|
|
|
|
Printing speed
|
2" per second
|
|
Warm-up time
|
None
|
|
Media feed
|
Manual and 1- or 2-roll
|
|
Media features
|
Automatic Roll selection
|
|
|
Automatic Roll Switching
|
|
|
Standard or Synchro Cut
|
|
|
Media Saver Mode
|
|
Maximum printable area
|
Depends on size of installed memory and
|
|
|
file complexity, but possible up to 50 feet
|
|
Dimensions
|
53" (W) x 35" (D) x 49" (H)
|
|
Weight
|
300 lbs (1 roll)
|
|
|
320 lbs. (2 rolls)
|
|
Electrical requirements
|
230 V, 50/60 Hz
|
|
Power consumption
|
46 W stand-by
|
|
|
1500 W operating
|
|
Noise level
|
61 dB (A) operating
|
|
Controller
|
|
|
Memory
|
64 Mb standard
|
|
Data formats
|
Vector: HP-GL, HP-GL/2
|
|
|
Calcomp 906/907/951
|
|
|
Raster: HP-RTL, TIFF 6.0, Cals Type 1, VDF/BGL,
|
|
|
C4/EDMICS, NIRS/NIFF
|
|
|
Postscript Level 2 (optional)
|
|
Interfaces
|
- Ethernet: 10/100 Mb RJ45 (UTP)
|
|
|
|
|
|
|
|
|
- Mini SCSI-2 (Scan to File)
|
|
Features
|
|
|
|
|
|
|
- Nesting and auto positioning
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- Plot transformation (rotation, print scaling)
|
|
|
- 32 customer selectable pen patterns for up to
|
|
|
|
|
|
|
|
Drivers and application software
|
|
|
Oce' ADI Driver
|
For AutoCad v. 12, 13 and 14
|
|
|
Windows 95/98 and NT 4.0
|
|
Oce' HDI Driver
|
For AutoCad 2000
|
|
|
Windows 95/98 and NT 4.0
|
|
Oce' Raster Driver
|
Windows 95/98 and NT 4.0
|
|
PostScript Level 2 drivers
|
For Windows 95/98 and NT 4.0
|
|
|
Macintosh System 7
|
|
Oce' Plot Director
|
Job submission software for Windows 95/98 and NT 4.0
|
|
Others
|
Certified drivers for e.g. MicroStation,
|
|
|
Intergraph and Pro Engineer, provided bythe
|
|
|
CAD/EDM software supplier
|
|
Drivers
|
Oce' supplies its own Windows 95/98, NT
|
|
|
drivers, AutoCad 2000 HDI and Plot Director
|
|
|
application. Oce' Partners that support Oce'
|
|
|
devices include: AutoDesk, Bentley, EQuorom
|
|
|
(Cadnet), Intergraph, Parametric Technologies,
|
|
|
Rasterex, SDRC and ZEH Graphics.
|
|
Options
|
|
|
Finishing
|
High-capacity delivery tray
|
|
|
Compact Output Stacker
|
|
Management Software
|
Print Exec print control software
|
|
|
Repro Desk print/Server software
|
|
Safety information
|
|
|
Safety approval
|
TuV GS, TuV FS, CE, UL, UL,
|
|
|
FCC Class A
|
|
Environmental
|
US EPA Energy Star compliant (copier version)
|
|
| Maximum Input Width |
36" |
|
Exposure Control Auto, Manual |
Auto |
| Maximum Input Length |
18' to 37' Depending on memory |
|
Reproduction Quality of Solids |
Excellent |
| Maximum Output Width |
36" |
|
Reproduction Quality of Linework |
Excellent |
| Maximum Output Length |
50'Dependent on memory |
|
Reproductions of Halftones |
Good |
| Multiple Copies |
1-99 |
|
Feet Per Minute |
10 |
| Reduction Capability |
Yes |
|
Copies Per Minute |
Unknown |
| Enlargement Capability |
Yes |
|
Collating Capability |
Electronic |
| Zoom Lens |
25-400% in 1% steps |
|
Analog or Digital Technology |
Digital |
| Accuracy |
+ or - .1% |
|
Photoreceptor Type |
OPC |
| Thick or Solid Originals |
Yes |
|
Toning System |
Mono Component Toner |
| Auto or Manual Roll Feed |
Auto |
|
Other Features |
Edge Adjustment |
| Auto or Manual Sheet Feed |
- |
|
Price Range at Introduction |
40,000 Full System |
| Manual Paper By-Pass |
Yes |
|
Equipment Manufactured By |
Oce' |
| Number of Rolls |
1 or 2 |
|
Footprint and Height |
53"W x 36"D x 44"H |
| Maximum Cassette Size |
N/A |
|
Weight |
Unknown |
| Light-Dark Document Control |
Yes |
|
AC Power Requirements |
|

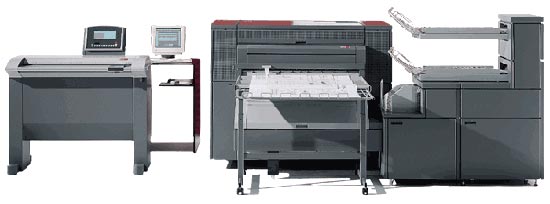

|  | The 9410 is a proprietary 300 dpi scanner with a small on board memory that eliminates the need to mechanically re-circulate the original when making multiple copies of the same original. The 9410 is designed specifically to work with the Océ' 9400 family of machines. |
| [−] |
Scanner
Model
Technology
Copy/scan speed
Digital retention
Digital zoom
Edge adjustment
Original format
Max. original length
Original size detection
Exposure control
Dimensions (h x w x d)
Weight
Electrical requirements
Power consumption
Noise level
|
Free standing unit with control panel
One 7500 pixel CCD with Oce's image logic real-time image processing hardware
2 inch/sec., 100% zoom
Up to 19 copies from one scan
25 to 400% in fixed steps or 1% increments
Leading and trailing edge (up to +/-80 mm in 5 mm steps)
Minimum: 8.2" x 8.2"
Maximum scan width: 36"
Maximum document width: 40.3"
Single copy: at least 18 ft.
|
|
|  | This one and two roll print engine component of the Océ 9400 family is quite probably one of the best print engines produced by anybody in the last ten years. It's instant on capability, straight paper path and energy saver features make the 9400 family of print engines powerful competitors. At four "D" sized print per minute output, this is a sturdy solution for "point of use" applications in big firms and "the printer" applications in small firms and facilitates management applications. There simply is no such thing as a maintenance free printer, but this one is real close. |
| [−] |
|
Printing Technology
Print head/print speed
Warm-up time
Toner system
Minimum printable area
Long plot
Dimensions (h x w x d)
Weight
Electrical requirements
Power consumption
Noise level
Certification
Media
Media feed
Media types
Min. media width
Min. media length
Roll width
Max. roll length
|
Electrophotography using organic photoconductor drum and enchanced resolution printing
LED, 2 inch/sec.
None
Closed
Max. 12.9 sq. ft. (1.2 m with 24 MB)
Max. 21.5 sq. ft. (2.0 m with 40 MB)
Max. 30.1 sq. ft. (2.8 m with 64 MB)
Up to 50 ft. (15 meters)
Max. printable area depends on size of installed memory and file complexity
44" x 53" x 36" (1251 x 1352 x 918 mm)
300 lb. / 149 kg (1 roll)
320 lb. / 159 kg (2 rolls)
110 - 230 V, 50/60 Hz
39 W stand-by
1500 W operating
<34 dB(A) stand-by 61 db(A) operating
TuV GS, TuV FS, CE, UL, FCC Class A
Manual and 1 - or 2-roll automatic
Plain paper, transparent paper, films, vellum
11 inch (297 mm)
17 inch (420 mm)
17, 22, 34 (ANSI); 18, 24, 30, 36 (ARCHI); A3, A2, A1, A0 (ISO); 500 mm, 700 mm (Imperial)
2 rolls x 500 ft. (150 m)
|
Controller
|
Architecture
Standard memory
Vector data formats
Raster data formats
Data format switching
Multiprint
Interfacing
Options
Memory upgrade
Interface
Scan-to-file
|
20 MHz RISC controller
24 MB
HP-GL, HP-GL/2
Calcomp 906/907
VDF, BGL
Cals Type 1, HP-RTL, TIFF 5.0, G3 & G4, NIRS, EDMICS (C4)
Automatic or via display panel
Up to 99
RS-232
Centronics
Plotter 48 MB to 64 MB, copier to 64 MB
Ethernet, Token-Ring, TCP/IP, Novell, Ethertalk
See Below
|
Plot manipulation for vector files
|
Auto positioning
Auto scaling
Media saver
Plot transformations
Software
Drivers
Oce` Plot Director
|
Automatically sets the ideal origin position and rotation for a plot, eliminating drawing clipping and saving media
Automatically scales plots to fit on the media loaded or any selected media size. Raster images are automatically scaled to their original size regardless of their resolution.
Automatically nests A, B, C plots side-by-side across the media, reducing media consumption
Rotation, scaling
Windows 3.1, 95, NT drivers
ADI drivers (AutoCad R 11, R 12, R 13) (Windows 3.1, 95, NT)
Printer remote control software (Windows 3.1, 95, NT)
|
|

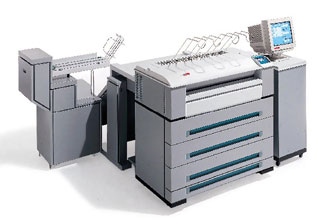

|  | Océ took their 9400 family, flagship printer, added a faster controller and relabeled it the "Series II." This one and two roll print engine component of the Océ 9400 family is quite probably one of the best print engines produced by anybody in the last ten years. It's instant on capability, straight paper path and energy saver features make the 9400 family of print engines powerful competitors. At four "D" sized print per minute output, this is a sturdy solution for "point of use" applications in big firms and "the printer" applications in small firms and facilitates management applications. There simply is no such thing as a maintenance free printer, but this one is real close. |
| [−] |
|
System
|
Engineering printing, copying and scan system
|
|
Printer
|
|
|
Technology
|
- Electrophotography (LED head) with Oce's
|
|
|
- enhanced-resolution printing
|
|
|
- Organic photoconductor (OPC)
|
|
|
|
|
Printing speed
|
2" per second
|
|
Warm-up time
|
None
|
|
Media feed
|
Manual and 1- or 2-roll
|
|
Media features
|
Automatic Roll selection
|
|
|
Automatic Roll Switching
|
|
|
Standard or Synchro Cut
|
|
|
Media Saver Mode
|
|
Maximum printable area
|
Depends on size of installed memory and
|
|
|
file complexity, but possible up to 50 feet
|
|
Dimensions
|
44" (W) x 53" (D) x 36" (H)
|
|
Weight
|
300 lbs (1 roll)
|
|
|
320 lbs. (2 rolls)
|
|
Electrical requirements
|
230 V, 50/60 Hz
|
|
Power consumption
|
46 W stand-by
|
|
|
1500 W operating
|
|
Noise level
|
61 dB (A) operating
|
|
Controller
|
|
|
Platform
|
Embedded Power PC 603e, 200 Mhz
|
|
Memory
|
128 Mb standard, expandable to 256 Mb
|
|
Data formats
|
Vector: HP-GL, HP-GL/2
|
|
|
Calcomp 906/907/951
|
|
|
Raster: HP-RTL, TIFF 6.0, Cals Type 1,
|
|
|
C4/EDMICS, NIRS/NIFF
|
|
|
Postscript Level 2 (optional)
|
|
Interfaces
|
- Ethernet: 10/100 Mb RJ45 (UTP)
|
|
|
|
|
|
|
|
|
- Mini SCSI-2 (Scan to File)
|
|
Network Protocols
|
TCP/IP
|
|
Optional Network
|
Net BEUI, Ethertalk and Novell (3.x and 4.x)
|
|
Protocols
|
With NDS-Pserver and Rprinter via an external
|
|
|
printserver.
|
|
Features
|
|
|
|
|
|
|
- Nesting and auto positioning
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- Plot transformation (rotation, print scaling)
|
|
|
- 32 customer selectable pen patterns for up to
|
|
|
|
|
|
|
|
Drivers and application software
|
|
|
Oce' ADI Driver
|
For AutoCad v. 12, 13 and 14
|
|
|
Windows 95/98 and NT 4.0
|
|
Oce' HDI Driver
|
For AutoCad 2000
|
|
|
Windows 95/98 and NT 4.0
|
|
Oce' Raster Driver
|
Windows 95/98 and NT 4.0
|
|
PostScript Level 2 drivers
|
For Windows 95/98 and NT 4.0
|
|
|
Macintosh System 7
|
|
Oce' Plot Director
|
Job submission software for Windows 95/98 and NT 4.0
|
|
Others
|
Certified drivers for e.g. MicroStation,
|
|
|
Intergraph and Pro Engineer, provided bythe
|
|
|
CAD/EDM software supplier
|
|
Drivers
|
Oce' supplies its own Windows 95/98, NT
|
|
|
drivers, AutoCad 2000 HDI and Plot Director
|
|
|
application. Oce' Partners that support Oce'
|
|
|
devices include: AutoDesk, Bentley, EQuorom
|
|
|
(Cadnet), Intergraph, Parametric Technologies,
|
|
|
Rasterex, SDRC and ZEH Graphics.
|
|
Options
|
|
|
Finishing
|
High-capacity delivery tray
|
|
|
Compact Output Stacker
|
|
Management Software
|
Print Exec print control software
|
|
|
Repro Desk print/Server software
|
|
Safety information
|
|
|
Safety approval
|
TuV GS, TuV FS, CE, UL, UL,
|
|
|
FCC Class A
|
|
Environmental
|
US EPA Energy Star compliant (copier version)
|
|

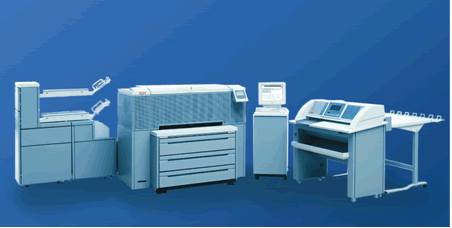

|  | Océ took their 9475 - 9476 family flagship printer - copier, added a faster controller, changed the paint color and relabeled it the "Series II." Talk about "bang for the buck," this one and two roll configuration of the Océ 9400 family, teamed with the Océ proprietary 9410 scanner to produce an affordable "engineering copier with scan to print, reduction and enlargement and multiple copy. Additionally the printer component of the system can be plugged directly into a CAD work station or attached to a computer network. The 9475 II - 9476 II systems are quite probably one of the best low end printing systems produced by anybody in the last ten years. The printers instant on capability, straight paper path and energy saver features make the 9455 II - 9456 II a family of powerful competitors. At four "D" sized prints per minute output, this is a sturdy solution for "point of use" applications in big firms and "the printer - copier Océ took their 9400 family, flagship printer, added a faster controller and relabeled it the "Series II." " applications in small firms and facilitates management applications. There simply is no such thing as a maintenance free digital system, but this one is real close. |
| [−] |
System |
Engineering printing, copying and scanning system. |
Printer |
|
Technology |
Electrophotography (LED head) with Oce's enhanced-resolution printing
Organic Photoconductor (OPC)
Closed toner system |
Printing speed |
2" per second |
Warm-up time |
None |
Media feed |
Manual and 1- or 2-roll |
Media features |
Automatic Roll selection |
|
Automatic Roll Switching |
|
Standard or Synchro Cut |
|
Media Saver Mode |
Maximum printable area |
Depends on size of installed memory and file complexity, but possible up to 50 feet |
Dimensions |
44" (W) x 53" (d) x 36" (H) |
Weight |
300 lbs. (1roll) |
|
320 lbs. (2 rolls) |
Electrical requirements |
230V, 50/60 Hz |
Power consumption |
46 W stand-by |
|
1500 W operating |
Noise level |
61 dB (A) operating |
Controller |
|
Platform |
Embedded Power PC 603e, 200 Mhz |
Memory |
128 Mb standard, expandable to 256Mb |
Data formats |
Vector: HP-GL, HP-GL/2 |
|
Calcomp 906/907/951 |
|
Raster: HP-RTL, TIFF 6.0, Cals Type 1, |
|
C4/EDMICS, NIRS/NIFF |
|
Postscript Level 2 (optional) |
Interfaces |
Ethernet: 10/100 Mb RJ 45 (UTP) |
|
Ethernet: 10 Mb (AUI) |
|
Centronics |
|
Mini SCSI-2 (Scan to File) |
Network Protocols |
TCP/IP |
Optional Network |
NetBEUI, Ethertalk and Novell (3.x and 4.x) |
Protocols |
with NDS-Pserver and Rprinter via an external printserver. |
Features |
Auto language sensing |
|
Auto port switching |
|
Nesting and auto positioning |
|
Up to 99 multi prints |
|
Poster mode |
|
Merge mode |
|
Auto scaling |
|
Plot transformation (rotation, print scaling) |
|
32 customer selectable pen patterns for up to 1000 pens |
|
Up to 256 grey levels |
Scanner |
|
Model |
Free-standing unit with control panel |
Technology |
One 7,500 pixel CCD and Oce's Image Logic real-time image processing hardware |
Digital retention |
Up to 19 copies from one scan |
Digital zoom |
25% to 400% in fixed steps or 1% increments |
Edge adjustment |
Leading- and trailing-edge compensation |
|
(up to +/-80 mm in 5 mm steps) |
Original format |
Maximum width: 40.3" |
|
Minimum width: 8.2" x 8.2" |
|
Scanned width: 36" |
Max. original length |
Single copy: at least 18 feet; retention: |
|
Depending on memory size and original |
Original delivery |
Front side or back side |
Cut |
Standard or synchro |
Exposure control |
Automatic Background Compensation |
|
Lighter/darker settings |
|
Invert copy mode |
Distance to printer |
Variable cable length of 9', 18' or 27' |
Dimensions |
49" (2) x 24" (D) x 44" (H) |
Weight |
130 lbs. |
Electrical requirements |
230 V/0.7 A, 50/60 Hz |
Power consumption |
4 W stand-by; 90 W operating |
Noise level |
O dB (A) stand-by; 60 dB (A) operating |
Scan-to-file |
|
Oce' Scan Station |
For Windows 95/98 and Windows NT 4.0 |
Resolution |
200, 300, 400 dpi |
Data formats |
Tiff 6.0 (b/w, G4) |
|
CALS Type 1 |
Scan mode |
Single Scan |
|
Batch scan with automatic numbering |
Check plot |
In single or batch mode |
File optimization |
Yes |
EDMS integration |
Yes, through scan tickets |
Oce' View Station |
Viewing, edit and enhancement software |
|
Including file format conversion |
Option |
Oce' Batch Processor for automated editing and |
|
Enhancement |
Recommended PC |
Pentium/90 Mhz with appropriate hard-disc |
|
Storage capacity |
PC Interface |
SCSI-2 for ISA/EISA and PCI |
Drivers and application software |
|
Oce' ADI Driver |
For AutoCad v. 12, 13 and 14 |
|
Windows 95/98 and NT 4.0 |
Oce' HDI Driver |
For AutoCad 2000 |
|
Windows 95/98 and NT 4.0 |
Oce' Raster Driver |
Windows 95/98 and NT 4.0 |
PostScript Level 2 drivers |
For Windows 95/98 and NT 4.0, |
|
Macintosh System 7 |
Oce' Plot Director |
Job submission software for Windows 95/98 |
|
And NT 4.0 |
Others |
Certified drivers for e.g. MicroStation, |
|
Intergraph and Pro Engineer, provided by the |
|
CAD/EDM software supplier |
Drivers |
Oce' supplies its own Windows |
|
|  | Talk about "bang for the buck," this one and two roll configuration of the Océ 9400 family, teamed with the Océ proprietary 9410 scanner to produce an affordable "engineering copier with scan to print, reduction and enlargement and multiple copy. Additionally the printer component of the system can be plugged directly into a CAD work station or attached to a computer network. The 9475 - 9476 systems are quite probably one of the best low end printing systems produced by anybody in the last ten years. The printers instant on capability, straight paper path and energy saver features make the 9455 - 9456 family powerful competitors. At four "D" sized prints per minute output, this is a sturdy solution for "point of use" applications in big firms and "the printer" applications in small firms and facilitates management applications. There simply is no such thing as a maintenance free digital system, but this one is real close.
Outright Purchase
$10,500 delivered and installed with 30 day parts Warranty.
When originally introduced this configuration retailed for $32,000
Lease Option
$347 per Month, 36 month lease, first and last payments in
advance, you own it at the end of the lease period. |
| [−] |
| Maximum Input Width |
12.9 sq. ft. (1.2 m2 with 24 MB)Max. 21.5 sq. ft. (2.0 m2 with 40 MBMax. 30.1 sq. ft. (2.8 m2 with 64 MB) |
|
Interfacing |
RS-232Centronics |
| Maximum Input Length |
Up to 50 ft. Dependent on memory |
|
Auto Positioning |
Automatically sets the ideal origin position and rotation for a plot, eliminating drawings clipping and saving media |
| Maximum Output Width |
12.9 sq. ft. (1.2 m2 with 24 MB)Max. 21.5 sq. ft. (2.0 m2 with 40 MBMax. 30.1 sq. ft. (2.8 m2 with 64 MB) |
|
Auto Scaling |
Automatically scales plots to fit on the media loaded or any selected media size. Raster images are automatically scaled to their original size regardless of their resolution. |
| Maximum Output Length |
Up to 50 ft. Dependent on memory |
|
Media Saver |
Automatically nests A, B, C plots side-by-side across the media, reducing media consumption |
| Min Media Width |
11 inch |
|
Print Speed |
2 in/sec |
| Min Media Length |
17 inch |
|
Copies Per Minute |
N/A |
| Auto or Manual Roll Feed |
Feed Manual and 1-or2-roll automatic |
|
Collating Capability |
N/A |
| Media Types |
Plain paper, transparent paper, films, vellum |
|
Analog or Digital Technology |
Digital |
| Multiple Copies |
1-99 |
|
Photoreceptor Type |
LED |
| Roll Width |
17, 22, 34 (ANSI)18, 24, 30, 36 (ARCHI)A3, A2, A1, A0 (ISO)500 mm, 700mm (Imperial) |
|
Toning System |
Closed |
| Max Roll Length |
2 rolls x 500 ft |
|
Other Features |
N/A |
| Architecture |
20 MHz RISC controller |
|
Price Range at Introduction |
$11,500 |
| Standard Memory |
24 MB |
|
Equipment Manufactured By |
Oce' |
| Vector Data Formats |
HP-GL, HP-GL/2Calcomp 906/907VDF, BG |
|
Footprint and Height |
44"W x 53"D x 36" H |
| Raster Data Formats |
Cals Type 1, HP-RTL, Tiff 5.0 G3 & G4, NIRS, EDMICS (C4) |
|
Weight |
300 |
| Data Format Switching |
Automatic or via display panel |
|
AC Power Requirements |
110-230 V, 50/60 Hz |
|
|  | The Océ 9600 is a versatile powerhouse that gives the user 8 "D" size prints per minute, coupled with an optional two, four, six roll capacity or two or four rolls with one and two sheet feed cassettes. It's instant on capacity, energy saver features, straight paper path and "from the front" copy delivery makes the 9600 "the" powerhouse in the mid-range production market place. |
| [−] |
|
Printer
|
|
|
Technology
|
Electrophotography (LED head) with Organic
|
|
|
Photoconductor drum and closed toner system
|
|
Resolution
|
400 dpi
|
|
Speed
|
17 feet per minute, or 4 "E" size per minute
|
|
Media sources
|
Several possible configurations from 2 to 6 rolls,
|
|
|
up to 3 paper cassettes and manual sheet by-pass
|
|
Output sizes
|
From 8" to 36" wide, up to 50 feet long
|
|
Media types
|
Plain, vellums, recycled, fluorescent and colored
|
|
|
papers; and films
|
|
Output reception
|
Standard Integrated Receiving Tray for 100
|
|
|
Prints of supported media types and sizes
|
|
Warm-up time
|
None
|
|
Noise Level
|
<68 dB(A) operating; o dB(A) stand-by
|
|
Electrical requirements
|
110 V, 50/60 Hz
|
|
Dimensions
|
55" (W) x 58" (H) x 30" (D) including integrated
|
|
|
receiving tray.
|
|
Weight
|
From 550 lbs. (2-roll model) to 792 lbs.
|
|
|
(6-roll + 1-sheet feeder model)
|
|
Safety approvals
|
UL, FCC
|
|
Controller
|
|
|
Platform/Memory
|
Pentium II, 350 MHz, 128 Mb (upgradeable
|
|
|
To 256 Mb) RAM, 4 Gbyte high-speed hard disk
|
|
|
dedicated to file spooling, and 9 Gbyte
|
|
|
hard disk dedicated to set memory
|
|
File Formats
|
HPGL, HPGL/2, HP-RTL, TIFF 6.0, CALS
|
|
|
Type 1, NIRS, C4, Calcomp 906-907,
|
|
|
PostScript Level 2 (optional)
|
|
Interfaces
|
Standard: Ethernet 10/100 BaseT
|
|
|
Optional: Ethernet 10 Base2
|
|
|
TokenRing: Centronics
|
|
Network protocols
|
TCP/IP (with FTP capabilities), NetBEUI,
|
|
|
Novell Pserver
|
|
Power consumption
|
250 W controller; 200 W monitor
|
|
Electrical requirements
|
110 V, 50/60 Hz
|
|
Functionality
|
- Multiple prints: up to 999
|
|
|
- Automatic data format sensing
|
|
|
- Auto roll selection and switching
|
|
|
- Plot manipulation: autopositioning, rotation,
|
|
|
autoscaling
|
|
|
- File spooling on the controller
|
|
|
- Set memory: process once, print many;
|
|
|
capacity to store up to 250 "E" size and create
|
|
|
identical sets sorted by page or by set (digital
|
|
|
Set collation)
|
|
|
- Multitasking: Concurrent receiving/processing/
|
|
|
printing/finishing of digital jobs
|
|
|
- Sophisticated 2-way user machine
|
|
|
communication with:
|
|
|
* Queue management application:
|
|
|
view status for each job, cancel,
|
|
|
hold/restart the entire job
|
|
|
* System control panel application:
|
|
|
view status and settings of system
|
|
|
Components
|
|
|
* Key operator and System
|
|
|
administrator application to set jobs
|
|
|
and system parameters
|
|
Drivers and application software
|
|
|
|
- Oce' ADI Driver: for AutoCAD 12, 13, 14,
|
|
|
Windows 3.x, NT and 95
|
|
|
- Oce' Windows driver: for Windows 3.x, NT
|
|
|
and 95
|
|
|
- Postscript Level 2 driver (option): for
|
|
|
Windows NT and 95
|
|
|
- Oce' Plot Director: for Windows 3.x, NT and 95
|
|
Optional finishing: Folder
|
|
|
Folding modes
|
On-line and off-line fanfold and crossfold
|
|
Fold method
|
Standard (=DIN-like), Ericsson, AFNOR-like;
|
|
|
Length: 10.8-12.2 inches
|
|
|
Width: 7.3-9.1 inches
|
|
|
Filling strip: 0.6-1.2 inches
|
|
Paper size
|
Width: 11-36-inches
|
|
|
Length: 8.3 inches-20 feet fanfold only;
|
|
|
8.3 inches-8 feet for fanfold and crossfold
|
|
First fold exit
|
Extra bin for fanfold
|
|
Optional belt delivery
|
Extra capacity of 100 "E" size folded drawings
|
|
Noise level
|
<67 dB(A) operating; o dB(A) stand-by
|
|
Power consumption
|
<135 W operating
|
|
Electrical supply
|
120 V, 50/60 Hz
|
|
Dimensions
|
87" (W) x 39" (H) x 50" (D)
|
|
Weight
|
484 lbs.
|
|
Optional finishing: Print delivery tray
|
|
|
Capacity
|
Up to 150 sheets (media type dependent)
|
|
|
from "A" size to "E" size
|
|
Types of media
|
Plain and transparent paper, film, vellum
|
|
Power
|
120 V, 50/60 Hz
|
|
Dimensions
|
46" (W) x 43" (H) x 57" (D) with full tray
|
|
|
Extended
|
|
Weight
|
78 lbs.
|
|
Scanner
|
|
|
Model
|
Free-standing console
|
|
|
Optional: Original delivery tray
|
|
Technology
|
CCD, Oce' Image Logic real-time image
|
|
|
processing hardware
|
|
Speed
|
- 16.4 linear feet/min. or approximately
|
|
|
Four E-size print/min. at 400 dpi
|
|
|
- 32 linear fee/min. at 200 dpi
|
|
Original feed
|
Face down, right aligned.
|
|
|
Automatic feed off/on
|
|
|
Rewind original to front off/on
|
|
Originals
|
Automatic original size detection
|
|
|
Image width: 8.27" - 35.98"
|
|
|
Original width: 8.27" - 40.16"
|
|
|
Original length: 5.91" - 49.21'
|
|
|  | The 9700 is in reality an emasculated 9800. Better than 95% of the parts are interchangeable between the two printers. There are substantial differences between the 9700 and the 9800 scanners. The 9700 operates at twenty-one feet per minute and very rarely has the "scan to file" features. It is generally limited to plot and "scan to print" applications. Since the 9700 is in reality a 9800 without the "oomph," it has all of the feature and shortcomings of the 9800. Océ in their infinite wisdom believed that they could fill the void between the 9600 and the 9800 with this striped down machine. What they did was create an animal that is neither "fish nor fowl." |
| [−] |
|
System
|
Digital engineering prints, copying and
|
|
|
scanning system
|
|
Oce' 9700 printer
|
|
|
Technology
|
Oce' Copy Press with OPC photoconductor
|
|
|
400 dpi print resolution. LED exposure
|
|
Paper supply
|
2 or 3 rolls (max. capacity 650 ft. per roll)
|
|
|
Manual sheet feed
|
|
|
Roll widths 11" to 36"
|
|
Print sizes
|
Max.: 36" x 18 ft. from scanner
|
|
|
Max.: 36" x 45 ft. from controller
|
|
|
Min.: 8.5" x 11"
|
|
Process speed
|
21 ft./min:
|
|
Page min.
|
ANSI Portrait Landscape
|
|
|
E 5.7 -
|
|
|
D 7.2 10.2
|
|
|
C 10.5 13.3
|
|
|
B 12.9 17.7
|
|
|
A - 2.2
|
|
Output media
|
16-30 lbs. plain paper
|
|
|
16-20 lbs.vellum
|
|
|
(Oce' 45-7500, 45-7502 or equivalent)
|
|
|
3.5 mil polyester film
|
|
Output
|
Copy delivery tray
|
|
|
(200 E-size prints, face-up)
|
|
|
Optional: folder, high-capacity stacker
|
|
Warm-up time
|
20 minutes
|
|
First copy
|
38 seconds
|
|
Document memory
|
36 Mb, 144 Mb max. (4 x 36 Mb modules)
|
|
Power supply
|
230/240 V (three phase), 15 A, 60 Hz
|
|
|
Standby: 1kW
|
|
|
Printing: 3.5 kW
|
|
Dimensions
|
67.7" (W) x 42.1" (D) x 53.9" (H)
|
|
Weight
|
1.633 lbs.
|
|
Oce' 9700 scanner
|
|
|
Model
|
Free-standing console
|
|
Technology
|
CCD,
|
|
|
Oce' Image Logic real-time image
|
|
|
processing hardware
|
|
Speed
|
16 ft./min.
|
|
Original feed
|
Face-down, right aligned, soft feed
|
|
Originals
|
Image width: 8.5" - 36"
|
|
|
Original width: 8.5" - 40.7"
|
|
|
Original length: 8.5" - 18 ft.
|
|
Max. thickness
|
0.1 mm - 0.04"
|
|
Exposure control
|
Automatic, manual fine-adjustment
|
|
|
Special modes: Photo, Dark Original, Blueprint
|
|
Media selection
|
Manual or automatic, based on original size
|
|
|
And zoom factor
|
|
Reproduction scale
|
- Zoom: 25% - 400% (adjustable in 1% and
|
|
|
.01% increments)
|
|
|
- 9 programmable fixed increments
|
|
|
- Image correction: +/- 3% in 0.1%
|
|
|
Increments (independently in vertical and
|
|
|
horizontal direction)
|
|
Other operating functions
|
- 3 modes: Copy, Print and Scan-to-file
|
|
|
- Concurrent scan and print
|
|
|
- Multi-copy mode: 1-999 copies
|
|
|
|
|
|
|
|
|
|
|
|
- Automatic reduction/enlargement
|
|
|
- Cut modes: Standard, Synchro and Custom
|
|
|
- Leading- and trailing-edge compensation
|
|
|
(up to +/- 100 mm) or (+/- 3.93")
|
|
|
|
|
|
|
|
Image editing
|
|
|
|
|
|
|
|
|
|
|
|
|
- Image stretch (vertical and horizontal)
|
|
Power supply
|
From printer
|
|
Dimensions
|
51.7" (W) x 23" (D) x 53.3" (H)
|
|
Weight
|
311 lbs.
|
|
Required floor space
|
147 sq. ft.
|
|
|
Including scanner, printer and service access
|
|
Oce' 9700 controller
|
|
|
Technology
|
Power PC Processor
|
|
Interfaces
|
Centronics parallel, RS-232 serial
|
|
|
SCSI-2, Ethernet (TCP/IP)
|
|
Data formats
|
Standard: HPGL 1 and 2, Calcomp 906-907,
|
|
|
TIFF 5.0 (with TIFF 6.0 extension Gr3, Gr4
|
|
|
And tiling), CALS 1, HP-RTL, ASCII
|
|
|
Oce' RCF-2 remote control commands to
|
|
|
program media selection, folding, sorting
|
|
Memory
|
64 Mb (Max. 256 Mb)
|
|
Weight
|
30 lbs.
|
|
Oce' 9700 folder
|
|
|
Folding modes
|
Standard
|
|
|
Bookfold
|
|
Fold methods
|
Length: 10.7" - 12"
|
|
|
Width: 7.3" - 9"
|
|
|
Binding edge: 0.6" - 1.2"
|
|
Paper size
|
Width: 11" - 36"
|
|
|
Length: Up to 23.6" (first fold only)
|
|
Power supply
|
From printer
|
|
Dimensions
|
106.2" (W) x 23.9" (D) x 57.9" (H)
|
|
Weight
|
322 lbs.
|
|
Oce' 9700 high-capacity delivery belts
|
|
|
Basic unit
|
2 flat delivery belts with offset stacking
|
|
|
Capacity: approximately 100 folded E-size
|
|
|
copies/prints per belt
|
|
Optional
|
Punching units (2, 3 or 4 hole)
|
|
Power Supply
|
From printer
|
|
Dimensions
|
55.1" (W) x 20.1" (D) x 58.3" (H)
|
|
Weight
|
200 lbs.
|
|
Oce' 9700 high-capacity stacker
|
|
|
Model
|
Delivery unit with 6 bins
|
|
|
Capacity: up to 1,200 unfolded E-size copies/prints
|
|
Operating modes
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Print sizes
|
A-E size
|
|
Power supply
|
From printer
|
|
Dimensions
|
60.7" (W) x 88.7" (D) x 55.3" (H)
|
|
Weight
|
866 lbs.
|
|
Oce' 9700 safety information
|
|
|
Safety approval
|
UL, CUL
|
|
|
FCC Class B
|
Oce' 9700 Technical Specifications
|
System
|
Digital engineering prints, copying and
|
|
|
scanning system
|
|
Oce' 9700 printer
|
|
|
Technology
|
Oce' Copy Press with OPC photoconductor
|
|
|
400 dpi print resolution. LED exposure
|
|
Paper supply
|
2 or 3 rolls (max. capacity 650 ft. per roll)
|
|
|
Manual sheet feed
|
|
|
Roll widths 11" to 36"
|
|
Print sizes
|
Max.: 36" x 18 ft. from scanner
|
|
|
Max.: 36" x 45 ft. from controller
|
|
|
Min.: 8.5" x 11"
|
|
Process speed
|
21 ft./min:
|
|
Page min.
|
ANSI Portrait Landscape
|
|
|
E 5.7 -
|
|
|
D 7.2 10.2
|
|
|
C 10.5 13.3
|
|
|
B 12.9 17.7
|
|
|
A - 2.2
|
|
Output media
|
16-30 lbs. plain paper
|
|
|
16-20 lbs.vellum
|
|
|
(Oce' 45-7500, 45-7502 or equivalent)
|
|
|
3.5 mil polyester film
|
|
Output
|
Copy delivery tray
|
|
|
(200 E-size prints, face-up)
|
|
|
Optional: folder, high-capacity stacker
|
|
Warm-up time
|
20 minutes
|
|
First copy
|
38 seconds
|
|
Document memory
|
36 Mb, 144 Mb max. (4 x 36 Mb modules)
|
|
Power supply
|
230/240 V (three phase), 15 A, 60 Hz
|
|
|
Standby: 1kW
|
|
|
Printing: 3.5 kW
|
|
Dimensions
|
67.7" (W) x 42.1" (D) x 53.9" (H)
|
|
Weight
|
1.633 lbs.
|
|
Oce' 9700 scanner
|
|
|
Model
|
Free-standing console
|
|
Technology
|
CCD,
|
|
|
Oce' Image Logic real-time image
|
|
|
processing hardware
|
|
Speed
|
16 ft./min.
|
|
Original feed
|
Face-down, right aligned, soft feed
|
|
Originals
|
Image width: 8.5" - 36"
|
|
|
Original width: 8.5" - 40.7"
|
|
|
Original length: 8.5" - 18 ft.
|
|
Max. thickness
|
0.1 mm - 0.04"
|
|
Exposure control
|
Automatic, manual fine-adjustment
|
|
|
Special modes: Photo, Dark Original, Blueprint
|
|
Media selection
|
Manual or automatic, based on original size
|
|
|
And zoom factor
|
|
Reproduction scale
|
- Zoom: 25% - 400% (adjustable in 1% and
|
|
|
.01% increments)
|
|
|
- 9 programmable fixed increments
|
|
|
- Image correction: +/- 3% in 0.1%
|
|
|
Increments (independently in vertical and
|
|
|
horizontal direction)
|
|
Other operating functions
|
- 3 modes: Copy, Print and Scan-to-file
|
|
|
- Concurrent scan and print
|
|
|
- Multi-copy mode: 1-999 copies
|
|
|
|
|
|
|
|
|
|
|
|
- Automatic reduction/enlargement
|
|
|
- Cut modes: Standard, Synchro and Custom
|
|
|
- Leading- and trailing-edge compensation
|
|
|
(up to +/- 100 mm) or (+/- 3.93")
|
|
|
|
|
|
|
|
Image editing
|
|
|
|
|
|
|
|
|
|
|
|
|
- Image stretch (vertical and horizontal)
|
|
Power supply
|
From printer
|
|
Dimensions
|
51.7" (W) x 23" (D) x 53.3" (H)
|
|
Weight
|
311 lbs.
|
|
Required floor space
|
147 sq. ft.
|
|
|
Including scanner, printer and service access
|
|
Oce' 9700 controller
|
|
|
Technology
|
Power PC Processor
|
|
Interfaces
|
Centronics parallel, RS-232 serial
|
|
|
SCSI-2, Ethernet (TCP/IP)
|
|
Data formats
|
Standard: HPGL 1 and 2, Calcomp 906-907,
|
|
|
TIFF 5.0 (with TIFF 6.0 extension Gr3, Gr4
|
|
|
And tiling), CALS 1, HP-RTL, ASCII
|
|
|
Oce' RCF-2 remote control commands to
|
|
|
program media selection, folding, sorting
|
|
Memory
|
64 Mb (Max. 256 Mb)
|
|
Weight
|
30 lbs.
|
|
Oce' 9700 folder
|
|
|
Folding modes
|
Standard
|
|
|
Bookfold
|
|
Fold methods
|
Length: 10.7" - 12"
|
|
|
Width: 7.3" - 9"
|
|
|
Binding edge: 0.6" - 1.2"
|
|
Paper size
|
Width: 11" - 36"
|
|
|
Length: Up to 23.6" (first fold only)
|
|
Power supply
|
From printer
|
|
Dimensions
|
106.2" (W) x 23.9" (D) x 57.9" (H)
|
|
Weight
|
322 lbs.
|
|
Oce' 9700 high-capacity delivery belts
|
|
|
Basic unit
|
2 flat delivery belts with offset stacking
|
|
|
Capacity: approximately 100 folded E-size
|
|
|
copies/prints per belt
|
|
Optional
|
Punching units (2, 3 or 4 hole)
|
|
Power Supply
|
From printer
|
|
Dimensions
|
55.1" (W) x 20.1" (D) x 58.3" (H)
|
|
Weight
|
200 lbs.
|
|
Oce' 9700 high-capacity stacker
|
|
|
Model
|
Delivery unit with 6 bins
|
|
|
Capacity: up to 1,200 unfolded E-size copies/prints
|
|
Operating modes
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Print sizes
|
A-E size
|
|
Power supply
|
From printer
|
|
Dimensions
|
60.7" (W) x 88.7" (D) x 55.3" (H)
|
|
Weight
|
866 lbs.
|
|
Oce' 9700 safety information
|
|
|
Safety approval
|
UL, CUL
|
|
|
FCC Class B
|
|
|  | This is it, this is the big Kahuna. This is the gun that the boys from Venlow used to fire the shot heard around the world and formulate the strategy that ultimately put Xerox Engineering Systems and their massive installed base of analog equipment in their grave. Xerox, demonstrating their trademark arrogance, believed that the digital technology that the 9800 brought to the market place was something that would happen "down the line" and that no one would pay "those kinds for prices" for digital technology. At the end of the day people would, and they did, and Xerox lost their dominance in and industry they had quite literally, created.
The 9800 has become the de-facto production machine for commercial and high volume (reprographic) printing. Ninety percent of the "big shops" in the country have 9800's. Unfortunately, power corrupts and absolute poser corrupts absolutely. Over the years Océ has become as arrogant, self centered and dictatorial as Xerox was and judging from their recent performance will probably suffer the same fait.
The Japanese in the form of KIP and Ricoh have introduced high speed machines that eclipse the prodigious production power of the 9800 and simply "bang for the buck" they are more efficient to own and operate. Many of the forward thinking shops are simply declaring themselves an "Océ Free Zone." |
| [−] |
|
Printer
|
|
|
Technology
|
Oce'
Copy Press with OPC photoconductor and
|
|
|
monocomponent toner; LED exposure; 400 dpi
|
|
|
resolution
|
|
Multiple prints
|
1-999
|
|
Set
Processing
|
Maximum
number of originals: 200, depending
|
|
|
on
number of set processing modules. Up to
|
|
|
4
modules can be installed, each with a capacity
|
|
|
of
approx. 5-15 E-size or 25 mixed size originals.
|
|
|
The
capacity varies depending on image
|
|
|
characteristics.
|
|
Process speed
|
33
feet/min. Prints/min.:
|
|
|
Feed
direction E D C_____B_____A____
|
|
|
Landscape- 14.5 19.5 26 32
|
|
|
Portrait 8
10.5 14.5 19.5 26
|
|
First
copy
|
20
seconds (for E-size)
|
|
Warm-up time
|
20
minutes
|
|
Media
supply
|
4 rolls
and manual sheet feed
|
|
Print
size
|
Width: 8.5"
- 36"
|
|
|
Length: 8.5"
- 20 feet
|
|
Media
type
|
Bond
paper: 16-30lbs.
|
|
|
Vellum: 16-20 lbs (Oce' 45-7500 or
|
|
|
equivalent)
|
|
|
Polyester film: 3.5-4.5 mil
|
|
Print
stacker
|
Capacity
200 unfolded E-size prints, face up
|
|
Dimensions
|
67.8" x
38.3" x 54" (W x D x H)
|
|
Weight
|
Approx.
1570 lbs.
|
|
Power
consumption
|
Stand-by: 1 kW; printing 3.5 kW
|
|
Mains
supply
|
208/240
V, 15 A, 3 phase, 60 Hz or
|
|
|
240 V,
38 A, 1-phase, 60 Hz
|
|
Scanner
|
|
|
Technology
|
CDD
Scanning; Oce' Image Logic real time
|
|
|
processing; true 400 dpi resolution
|
|
Originals
|
Width:
8.5" - 40.7"
|
|
|
(max. image width: 36")
|
|
|
Length:
20 feet
|
|
|
Max.
thickness: 1/10 inch
|
|
|
Face-up
soft original feed, left aligned
|
|
|
Special
modes for dark originals, blueprints
|
|
|
and
(aerial) photographs
|
|
Speed
|
33
feet/min.
|
|
Exposure control
|
Automatic, with manual fine-adjustment
|
|
Roll
selection
|
Automatic, (based on original width and zoom
|
|
|
factor)
or manual
|
|
Reproduction scale
|
Zoom:
25-400% in 1% and 0.1% increments
|
|
|
9
programmable fixed steps
|
|
|
corrections: +/-3% in 0.1% increments
|
|
|
(independently in X and Y directions)
|
|
Electronic stamping
|
50
programmable messages up to 40 characters
|
|
|
each;
date and time stamps; 2 fonts; 4 grayscales;
|
|
|
3 preset
positions
|
|
Other
operating functions
|
Concurrent scan and print
|
|
|
Pre-programming of next jobs
|
|
|
5
programmable job memories
|
|
|
Automatic zoom
|
|
|
Standard
size cut
|
|
|
Independent leading and trailing edge
|
|
|
adjustments
|
|
|
Programmable default settings
|
|
|
Automatic on/off timers
|
|
Electronic image editing
|
shift
|
|
|
mirroring
|
|
|
Area
keep / delete
|
|
|
stretch
|
|
Dimensions
|
50" x
24.5" x 45.7" (W x D x H)
|
|
Weight
|
Approx.
320 lbs.
|
|
Mains
supply
|
From
printer
|
|
Controller
|
|
|
Technology
|
Dual
RISC processor based embedded hardware
|
|
|
controller
|
|
Data
formats
|
Vector: HP-GL, HP-GL/2, HP-RTL
|
|
|
Raster:
TIFF 5.0, CALS 1
|
|
|
Automatic data format sensing
|
|
Minimum printable
|
0.0025"
(1/400")
|
|
dot
size
|
|
|
Plot
length
|
Maximum:
19?"
|
|
Memory
|
72 MB
(120 MB with Long Plot Performance
|
|
|
Option)
|
|
Other
features
|
Remote
commands for printer functions and set
|
|
|
processing
|
|
Interfaces
|
Standard: parallel (Centronics), serial
(RS-232C)
|
|
|
Optional: SCSI-2, Ethernet, Token-ring, IBM
|
|
|
Simultaneous Interface Operation of up to 5
|
|
|
interfaces
|
|
Weight
|
Approx.
33 lbs.
|
|
Mains
supply
|
From
printer
|
|
Folder
|
|
|
Type
|
On-line
folder, integrated in printer
|
|
Fold
methods
|
Standard, bookfold
|
|
|
Folded
package Width: 7.3"
- 9"
|
|
|
Length: 10.7"
- 12"
|
|
|
Binding edge:
0.6" - 1.2"
|
|
Copy
Sizes
|
Width: 11"
- 36"
|
|
|
Length: 16.5"
- 98.5" (fanfold only: 236")
|
|
|
Automatic copy size detection and calculation of
|
|
|
fold
patterns
|
|
Delivery
|
Two
belts will stack a total of approx. 200 folded
|
|
|
E-size
prints
|
|
Dimensions
|
106.2" x
23.9" x 57.9" (W x D x H)
|
|
Weight
|
520 lbs.
|
|
Mains
supply
|
From
printer
|
|
|  | I wish someone would help me here. I simply do not understand how Oce', in their infinite wisdom, thinks they can take a Contex scanner and a Encad (Kodak) printer, paint them green; tie them together with a controller of questionable origin and think they can sell this colleague for over $40 grand. The product has been in the market for almost three years and I have yet to see one at a show that was operational. They always have a technician crawling around on them. If an integrated system is your cup of tea and you simply "must have one", save yourself $20 grand and look at the HP 815mfp. |
| [−] |
Technology
|
Multi printhead thermal ink jet
|
Printheads
|
10 semi-permanent printheads each
with 208 nozzles (4 x black, 2 x cyan, 2 x
magneta, 2 x yellow)
|
True resolution
|
600 x 600 dpi
|
Minimum pen
|
.0032 inches
|
Calibration
|
Automatic printhead alignment
|
|
Failing nozzle compensation
|
|
Unattended printing in the
overnight mode
|
Size of ink tanks
|
400 ml
|
Ink level monitoring
|
Ink level indication
|
|
Outo of ink signalling
Leading and trailing
strip: .2 inch
Left and right sides: .12
inch
|
Width detection
|
Automation
|
Media types
|
Uncoated (17-24#)
Coated (24#)
Polyester films (3-4 mil)
Alternate photo glossy (50#)
Vellum (16-20#)
|
Media sources
|
1 or 2 front loadable rolls
|
Media core size
|
2"
|
Maximum roll length
|
300 feet
|
Output delivery
|
Slide, front-accessible
|
Noise level
|
Less than 44 dB (A) standby
|
|
Less than 65 dB(A) printing
|
Dimensions
|
58" (h) x 77' (w) x 41" (d)
|
Electrical
Requirements
|
100/120/230 Volt 50/60 Hz
|
Power consumption
|
EPA-sleepmode (printer only)* 38 W
|
|
Standby 108 W
|
|
Run 159 W
Note: Printer and
Oce'
Power Logic controller excluding monitor
|
Weight
|
364-397 lbs.
|
Safety approvals
|
CE-compliance, TUV-GS (IEC60950),
UL, Cul (according to standard CAN/CSA C22.2 No
60950), CBH Compliance with EN 60950
|
Other
|
Energy Star compliant
|
Oce' TCS400 Scan unit
Technology
|
Fully integrated RGB color
scanning
|
Cameras
|
3 x Reduction type CCD
Cameras
|
Optical resolution
|
508 dpi
|
Calibration
|
Automatic colour calibration based
on IT8.7-card
|
|
Automatic camera alignment
|
|
Automatic stitching control
|
Mechanical speed
|
Max 8 ips
|
Scanning width
|
Max. 40" / 1016mm
|
Original thickness
|
Max. 0.60 inch
|
Original feed
|
Face down
|
Original out
|
Rewind and hold
|
|
Feed and release
|
|
Feed and hold
|
Original delivery
|
Slide, front accessible
|
|
Optional: original delivery rack
at the back
|
Dimensions
|
42" (h) x 53" (w) x 20" (d)
|
Electrical
Requirements
|
100/120/230 Volt 50/60 Hz
|
Power consumption
|
Sleepmode: 45 W
|
|
Stand-by: 135 W
|
|
Run: 135 W
|
Warm up time
|
From sleep mode: about 6 min.
|
|
From cold start (timer
controllable) about 6min.
|
Weight
|
232 lbs.
|
Safety approvals
|
CE Compliance, TUV-GS (IEC60950),
UL, CB compliance with EN60950
|
Oce' Power Logic Controller
hardware
Platform
|
Oce' controller with embedded
Windows XP
|
Memory
|
512 MB maximum standard
|
Hard disk capacity
|
80 GB Maximum standard
|
Graphic User Interface
|
Optional: keyboard, mouse and
monitor (mandatory with scan to file module)
|
Power consumption
|
Controller < 75 W
|
|
Monitor 200 W
|
Electrical requirements
|
120/230 V, 50/60 Hz
|
Standard interface
|
RJ45
|
Network
|
Ethernet 10/100baseT
|
Network protocol
|
TCP/IP, IPX/SPX
|
Printing protocol
|
LPR/LPD/LPQ/LPRM, Pserver (Novell)
3.x/4.x45.x, FTP
|
Oce' Power Logic Controller software
Core module
|
|
File spooling on the controller
|
|
|
Concurrent
receiving/processing/printing/copying/scanning
|
|
|
Oce' Setting Editor
|
|
|
Oce' System Control Panel
|
|
|
Oce' Advanced Queue Manager
|
|
Optional
|
Oce' Account Logging
|
Print module
Print processing technology
|
Print Optimization Kernel
|
Printer transfer curves
|
Standard inclusive ink reduction
|
Color modes
|
B&W/Grayscale, Color
|
Quality modes
|
Text & Lines, Area fills
|
Language sensing
|
Automatic
|
Standard file formats
|
Vector: HPGL, HPGL/2, Calcomp
|
|
Raster: HP-RTL, TIFF 6.0, CALS,
C4, NIRS/NIFF
|
Optional
|
Adobe PS3/PDF-printing
|
Number of prints
|
1-999, send once, process once,
print many
|
Roll selection and switching
|
Manual, Automatic
|
Plot manipulation
|
Rotation, auto-scaling,
positioning
|
|
Pen management
|
|
Leading and trailing strip
adjustment (add or remove up to 16 inches),
horizontal mirroring
|
Cut length
|
Standard, synchro or user defined
|
Supported media formats
|
DIN, ANSI, ARCHI
|
Copy module
Copy processing technology
|
Oce' Image Logic Color
|
Color management
|
Based on OMP-profiles
|
Number of copies
|
1-99
|
|
Set Memory: scan once, process
once, print many
|
Original handling
|
Manual or automatic size detection
|
|
Automatic Deskewing
|
Job settings
|
Programmable default setting
|
|
Pre-programming of the next copy
|
|
Single sheet or multiple sheet/set
|
|
Priority setting on job level
|
|
Start printing while scanning
|
Copy color modes
|
Grayscale, color, blueprint
|
Copy quality modes
|
Check, release, presentation
|
|
Automatic resolution optimization
|
Copy content modes
|
Text & lines, Area fills
|
Exposure control
|
Manual fine adjustment
|
|
Automatic background compensation
(on/off)
|
Copy manipulation
|
Leading strip adjustment (add or
remove up to 16 inches)
|
|
Invert
|
|
Image mirroring
|
|
Positioning
|
|
Keep or delete region of interest
|
Scale
|
Manual: 10-1000 %
|
|
Automatic: fit to media size
|
|
Fit to standard media format
|
Roll/media selection
|
Manual, Automatic
|
Cut length
|
Standard, Synchro or user defined
|
Scan-to-File module
Scan processing technology
|
Oce' Image Logice Color
|
Resolution
|
72, 200, 300, 400, 600 dpi
|
Data formats
|
Tiff, Cals, PDF
|
File naming
|
Automatic, Prompt for file name
|
Numbers of destinations
|
10, pre programmable in Oce'
Settings Editor
|
Kind of destination
|
Scan to controller
|
|
Scan to network directory
|
|
Scan to Web (via FTP)
|
Original handling
|
Manual and automatic size
detection
|
|
Automatic deskewing
|
Job settings
|
Programmable default setting
|
|
Pre-programming of the next scan
|
Scan Manipulation
|
Auto crop
|
|
Scale while scan (10-1000%)
|
|
Automatic background compensation
(on/off)
|
Submission
Drivers
|
|
WPD
|
Windows 9x/ME/2000/NT 4.0/XP
|
ADI
|
AutoCAD 14 (on all supported
platforms)
|
HDI
|
AutoCAD 2000/2001/2002/2004 (on
all supported platforms)
|
PostScript 3
|
Graphical application software
(Acrobat, Photoshop, etc) on Windows and Apple
MacIntosh; Unix PostScript
|
Job submission Optional
|
Oce' Print Exec LT Web,
accessible via internet browser
|
|
Oce' Print Exec LT Windows
|
Remote Access
Oce' Remote Logic
|
Oce' Settings Editor
|
|
Oce' System Control Panel
|
|
Oce' Advanced Queue Manager
|
|
|  | Océ's most recent attempt at keeping the 9400 print engine in the low end segment of the market. The 9400 print engine is one of the best that was ever produced. Océ has taken this tried and true performer and upped the 300 dpi output to 600 dpi. Now here is where Océ gets cagey, the 600 dpi is "off the drum," this is effectively 400 dpi on the print. Scan to file is still an expensive option. |
| [−] |
|
|  | The TDS 400 is a midlife re-labeling and product upgrade of the Océ 9400 II. Unfortunately like many things that happen in midlife it is more re-labeling than it is upgrade. Océ changed the controller and the software around on the 9400 II and called it a TDS 400. |
| [−] |
|
Technology
|
Electrophotography (LED)
with organic photoconductor drum and closed
toner system
|
|
Resolution
|
600 dpi
|
|
Quality modes
|
Normal and Poster
|
|
Speed
|
10 linear feet/min or 2 "E"
size/min
|
|
Media sources
|
1 roll version with manual
feed
|
|
|
2 roll version with manual
feed
|
|
|
2 roll version with manual
feed and extended integrated stacker for up to
100 prints
|
|
Warm-up time
|
None
|
|
Output sizes
|
"B" to "E" size and 36", up
to 49 linear feet long depending on file
complexity
|
|
Media types
|
Plain, transparent,
recycled, fluorescent and colored paper, films
and vellums.
|
|
Noise level
|
62 dB (A) Operating; o dB
(A) standby
|
|
Dimensions (w x l x h)
|
53.5" x 40" x 50"
|
|
Power consumption
|
Standby 42 W, run 1500 W
|
|
Electrical requirements
|
115 V, 20 Amps
|
|
Weight
|
386 lbs. 1 roll version
|
|
|
408 lbs. 2 roll version
|
|
Safety approvals
|
TuV GS, CE, (c ) UL, FCC
Class A
|
|
Others
|
Energy Star compliant
|
|
|  | The TDS is a midlife re-labeling and product upgrade of the Océ 9400 II. Unfortunately like many things that happen in midlife it is more re-labeling than it is upgrade. Océ changed the controller and the software around on the 9400 II and called it a TDS 600. |
| [−] |
Technology
|
Electrophotography (LED
printhead) with organic photoconductor drum and
closed toner system
|
Resolution
|
400 dpi
|
Speed
|
16.4 linear feet/min. or
approximately 4 E-size prints/min.
|
Media sources
|
Multiple configurations
from 2 to 6 rolls, up to 3 sheet feeders
|
Output sizes
|
From 8" x 11" to E-size
and 36" up to 49.2 feet long
|
Media types
|
Plain, transparent,
recycled, fluorescent and colored papers; films
and vellums
|
Output reception
|
Standard integrated
receiving tray for up to 100 prints
|
Warm-up time
|
None, instant on
|
Noise level
|
<68 dB(A) operating; x dB(A)
stand-by
|
Power consumption
|
<1500 W operating; <15 W
low power mode
|
Electrical requirements
|
120/200/230 V, 50/60 Hz
|
Dimensions (W x H x D)
|
55.12: x 58.87" x 29.65"
including integrated receiving tray (6-roll +
1-sheet feeder model)
|
Safety approvals
|
TuV GS, CETECOM, CE, (c )
UL, FCC Class B
|
Others
|
EnergyStar compliant
|
|
|  | The TDS 800 is a midlife re-labeling and product upgrade of the Océ 9800. Unfortunately, like many things that happen in midlife it is more re-labeling than it is upgrade. Océ changed the controller and the software around on the 9800 and called it a TDS 800. One of the important things about the TDS 800 is that due to various "software lockouts", only Oce' authorized technicians (read NCR) can work on the system. In other words, if you buy one of these machines, you are in bed with Océ until you decide to get rid of it. And then your remarketing options are severely limited because you either have to trade it to Océ, guess who gets the short end of the stick on this deal, or try and find another poor sole who got talked into a TDS 800 when he should have purchased a 9800.
Be careful, everything Océ does is designed to benefit Océ. They do not care one about what is in the best interests of you the client. You are on the bottom rung of the pecking order and if Océ has anything to say about it you will remain there. The truth of the situation is that they make some of the best machinery and software in existence. It is sad they are so difficult to deal with. |
| [−] |
Technolgy
|
Oce' Copy Press with
organic photo conductor and LED exposure
|
Resolution
|
400 dpi
|
Speed
|
42' per minute
|
|
16 D-size prints per minute
|
Media sources
|
6 rolls (max. capacity 650'
per roll)
|
|
Manual sheet feed from 8.5"
to 36"
|
|
Roll widths from 8.5" to
36"
|
Output sizes
|
From 8.5" to 36", up to
650' long
|
Media types
|
Plain, transparent,
fluorescent and colored papers; films and
vellums
|
Output reception
|
Copy delivery tray
|
Warm-up time
|
17 minutes
|
First print out
|
19 seconds
|
Noise level
|
Standby: 46 dB(A)
|
|
Run: 59 dB(A)
|
|
Pulse: 1 dB(A)
|
Mains supply
|
200-240 V (3 phases), 50/60 Hz, 16
a
|
Power consumption
|
Low power mode <500 W;
Standby <820 W; Printing <4100W
|
Dimensions
|
67.7" (W) x 45.1" (D) x
55.1" (H)
|
Weight
|
2070 pounds
|
|
|
|
|
405-488-7292
P.O. Box 14469 Oklahoma City, Oklahoma 73113
[email protected]
|
|
|
